Soundbar Universal Extra Slim – SUPSTV016
Soundbar bracket Extra Slim
- Compatibility – The soundbar mounting bracket fits most 32 to 70 inch TVs. VESA from 75×75 to 600×400
- Flexibility – Soundbar that can be positioned both above and below the TV, even at different heights and distances from the TV
- Durability– Brackets are made from 2.5mm thick high quality black brushed steel to hold sound bars up to 15kgs / 33lbs
Supporto universale per Soundbar
Extraslim
Specification data
SOUNDBAR COMPATIBLE: Universal
WEIGHT CAPACITY: 15kg / 33lbs
Additional Information
CODE: SUPSTV016
BARCODE: 8054242081121
MODEL: Soundbar Universal Extra Slim
MATERIAL: Steel
ADDITIONAL CONTENT: Instructions manual, 2 years warranty
OUTER CARTON: 20 pz
Downloads
Datasheet
Manual
37-80 Tilt Extra Slim – SUPSTV015
TV Wall Mount 37-80
Tilt Extra Slim
- TV wall mount for all LCD/LED/PLASMA TVs
- VESA compatible 600×400
- Tilt TV brackets
- Tilt range 0° ~ -8°
TV size 37″- 80″
Tilt Extra Slim
Max VESA compatible 600×400
Specification data
TV SIZE: 37″- 80″
WEIGHT CAPACITY: 35kg / 77lbs
VESA COMPATIBLE: 200×200, 300×300, 400×200, 400×400, 600×400
Additional information
CODE: SUPSTV015
BARCODE: 8054242081114
TV MODEL: Lcd, Led, Plasma
TILT RANGE: 0° ~ -8°
MATERIAL: Steel
ADDITIONAL CONTENT: Instructions manuals, 2 years warranty
OUTER CARTON: 14 pz
Downloads
Datasheet
Manual
QLED Extra Slim – SUPSTV014
Universal wall mount for Samsung® QLED TVs*
- LCD/LED/PLASMA/CURVED TVs
- Tilt range +3° ~ -3°
LCD/LED/PLASMA/CURVED TVs
Models Samsung® QLED
Tilt range +3° ~ -3°
Specification data
TV: LCD/LED/PLASMA/CURVED TVs
WEIGHT CAPACITY: 50kg / 110lbs
*MODEL COMPATIBLE:
- Q7C™ (49″/55″/65″), Q7CN™ (55″/65″), Q7F™ (49″/55″/65″), Q7FN™ (55″/65″)
- Q8C™ (55″/65″), Q85R™ (55″/65″)
- Q900™ (55″/65″), Q900R™ (55″/65″), Q950R™ (65″), Q950T™(65″), Q95T™ (55″/65″), Q90R™ (55″/65″), Q9F™ (65″), Q9FN™ (55″/65″)
TILT RANGE: +3° ~ -3°
Additional Information
CODE: SUPSTV014
BARCODE: 8054242081060
MATERIAL: Steel
ADDITIONAL CONTENT: Cable managment, instructions manuals, 2 years warranty
OUTER CARTON: 8 pcs
Downloads
Datasheet
Manual
Projector Full Motion Mount – SUPSTV013
Projector Full Motion Mount
- VESA compatible ø 54-320 mm
- Full motion mount
- Tilt range +15° ~ -15°
- Swivel range 360°
- Level adjustment +15° ~ -15°
360° swivel feature
Vesa compatible ø 54-320 mm
Full motion
Specification data
PROJECTOR SIZE: Universal
WEIGHT CAPACITY: 13.5kg / 29.7lbs
VESA COMPATIBLE: ø 54-320 mm
Additional Information
CODE: SUPSTV013
BARCODE:8054242080995
MODEL: Projector Full Motion Mount
TILT RANGE: +15° ~ -15°
SWIVEL RANGE: 360°
LEVEL ADJUSTMENT: +15° ~ -15°
MATERIAL: Steel
ADDITIONAL CONTENT: Instructions manuals,
2 years warranty
OUTER CARTON: 10 pcs
Downloads
Datasheet
Manual
42-70 Triwood – SUPSTV012
Universal TV Stand
42-70 Triwood
- Universal TV Stand for all LCD/LED/PLASMA
and CURVED TVs - Compatible with Samsung Q6 series
- Max VESA compatible 600×400
- Swivel TV brackets
- Level adjustment +180° ~ -180°
TV size 42″- 70″
+180° ~ -180° swivel feauture
Max VESA compatible 600×400
Specification data
TV SIZE: 45″- 70″
WEIGHT CAPACITY: Normal floor 32kg / 70.4lbs
Glossy Floor 25kg / 55lbs
VESA COMPATIBLE: 200×200/300×200/300×300
400×200/400×300/400×400/600×400
Additional Information
CODE: SUPSTV012
BARCODE: 8054242080988
MODEL: 42-70 Triwood
LEVEL ADJUSTMENT: +180° ~ -180°
ADDITIONAL CONTENT: Cable management system, Instructions manuals, 2 years warranty
OUTER CARTON: 3 pcs
Download
Datasheet
Manual

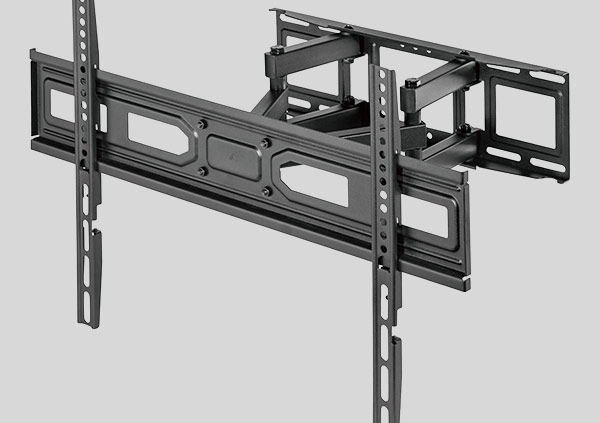

37-80 Full Motion Extra Slim – SUPSTV011
TV Wall Mount 37-80
Full Motion Extra Slim
- TV wall mount for all LCD/LED/PLASMA TVs
- Compatible with Samsung Q6 series
- Max VESA compatible 600×400
- Full motion TV brackets
- Tilt range +5° ~ -15°
- Swivel range +60° ~ -60°
- Level adjustment +3° ~ -3°
TV size 37″- 80″
Full motion extra slim
Max VESA compatible 600×400
Specification data
TV SIZE: 37″- 80″
WEIGHT CAPACITY: 40kg / 88lbs
VESA COMPATIBLE: 200×200/300×300/400×200/400×400/600×400
Additional Information
CODE: SUPSTV011
BARCODE: 8054242080971
MODEL: 37-80 Full Motion Extra Slim
TILT RANGE: +5° ~ -15°
SWIVEL RANGE: +60° ~ -60°
LEVEL ADJUSTMENT: +3° ~ -3°
MATERIAL: Steel
ADDITIONAL CONTENT: Cable management system, Direction indicator, Instructions manuals, 2 years warranty
OUTER CARTON: 3 pcs
Downloads
Datasheet
Manual
13-42 Full Motion Extra Slim – SUPSTV010
TV Wall Mount 13-42
Full Motion Extra Slim
- TV wall mount for all LCD/LED/PLASMA TVs
- Max VESA compatible 200×200
- Full motion TV brackets
- Tilt range +5° ~ -12°
- Swivel range +90° ~ -90°
- Level adjustment +3° ~ -3°
TV size 13″- 42″
Full motion extra slim
Max VESA compatible 200×200
Specification data
TV SIZE: 13″- 42″
WEIGHT CAPACITY: 20kg / 44lbs
VESA COMPATIBLE: 75×75, 100×100, 200×100, 200×200
Additional Information
CODE: SUPSTV010
BARCODE: 8054242080872
MODEL: 13-42 Full Motion Extra Slim
TILT RANGE: +5° ~ -12°
SWIVEL RANGE: +90° ~ -90°
LEVEL ADJUSTMENT: +3° ~ -3°
MATERIAL: Steel
ADDITIONAL CONTENT: Cable management system, Direction indicator, Instructions manuals, 2 years warranty
OUTER CARTON: 8 pcs
Downloads
Datasheet
Manual
13-42 Motion Extra Slim – SUPSTV009
TV Wall Mount 13-42
Motion Extra Slim
- TV wall mount for all LCD/LED/PLASMA TVs
- Max VESA compatible 200×200
- Motion TV brackets
- Tilt range +5° ~ -12°
- Swivel range +90° ~ -90°
- Level adjustment +3° ~ -3°
TV size 13″- 42″
Motion extra slim
Max VESA compatible 200×200
Specification data
TV SIZE: 13″- 42″
WEIGHT CAPACITY: 20kg / 44lbs
VESA COMPATIBLE: 75×75, 100×100, 200×100, 200×200
Additional Information
CODE: SUPSTV009
BARCODE: 8054242080858
MODEL: 13-42 Motion Extra Slim
TILT RANGE: +5° ~ -12°
SWIVEL RANGE: +90° ~ -90°
LEVEL ADJUSTMENT: +3° ~ -3°
MATERIAL: Steel
ADDITIONAL CONTENT: Cable management system, Direction indicator, Instructions manuals, 2 years warranty
OUTER CARTON: 10 pcs
Downloads
Datasheet
Manual
TV Wall Mount 23-42
Tilt Extra Slim
- TV wall mount for all LCD/LED/PLASMA TVs
- Max VESA compatible 200×200
- Tilting TV brackets
- Tilt range 0° ~ -8°
TV size 23″- 42″
Tilt extra slim
Max VESA compatible 200×200
Specification data
TV SIZE: 23″- 42″
WEIGHT CAPACITY: 35kg / 77lbs
VESA COMPATIBLE: 50×50, 75×75, 100×100, 200×100, 200×200
Additional Information
CODE: SUPSTV008
BARCODE: 8054242080865
MODEL: 23-42 Tilt Extra Slim
TILT RANGE: 0° ~ -8°
MATERIAL: Steel
ADDITIONAL CONTENT: Instructions manuals, 2 years warranty
OUTER CARTON: 20 pcs
Downloads
Datasheet
Manual
60-100 Fixed Extra Slim – SUPSTV007
TV Wall Mount 60-100
Fixed Extra Slim
- TV wall mount for all LCD/LED/PLASMA TVs
- Max VESA compatible 900×600
- Fixed TV brackets
- Compatible with Samsung Q6 series
TV size 60″- 100″
Bubble level
Max VESA compatible 900×600
Specification data
TV SIZE: 60″- 100″
WEIGHT CAPACITY: 75kg / 165lbs
VESA COMPATIBLE: 200×200, 300×200, 300×300, 400×200,
400×300, 400×400, 600×400, 600×600, 800×600, 900×600
Additional Information
CODE: SUPSTV007
BARCODE: 8054242080773
MODEL: 60-100 Fixed Extra Slim
MATERIAL: Steel, plastic
ADDITIONAL CONTENT: Spring lock system, Bubble level,
Instructions manuals, 2 years warranty
OUTER CARTON: 5 pcs
Downloads
Datasheet
Manual
